Leman Guide for Makita KC100 Mortiser

    Description

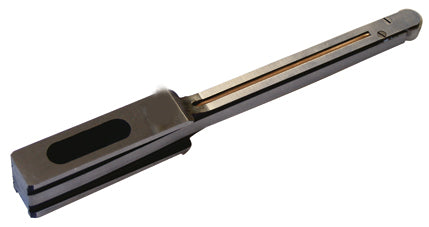

    Leman guide for Makita KC100 mortiser, international standard pitch of 15.8 mm. Guide equipped with a Staufer manual lubricator, a chain tensioner and a 13 mm slide groove (G), the bearing path is 17.4 mm, internal dimension to the 2 external teeth 3x3.58 for chains with a thickness of 25 to 30 mm.

    Fits with Leman chain REF 17501.2536 dimensions 25 x 30 x 100 mm, internal dimension at the 2 external teeth 17.4 (3x5.8) and sprocket bore 16 mm REF 17504.25305D.

    Please note that Leman parts are not compatible with original parts, you must fit a Leman chain + guide + sprocket.

    Leman Guide for Makita KC100 Mortiser

      Product form

      €430,00 HT (€516,00 TTC)

      • Produit en stock et références d'origines

      Leman guide for Makita KC100 mortiser, international standard pitch of 15.8 mm. Guide equipped with a Staufer manual lubricator, a... Read more

      SKU: 17503.2530100

        • Système de paiement sécurisé
        • Livraison rapide et gratuite à partir de 200€
        • Service après-vente : Olivier de Meygalmat vous répond de 8 H à 17 H du lundi au vendredi au 0471084211

          Description

          Leman guide for Makita KC100 mortiser, international standard pitch of 15.8 mm. Guide equipped with a Staufer manual lubricator, a chain tensioner and a 13 mm slide groove (G), the bearing path is 17.4 mm, internal dimension to the 2 external teeth 3x3.58 for chains with a thickness of 25 to 30 mm.

          Fits with Leman chain REF 17501.2536 dimensions 25 x 30 x 100 mm, internal dimension at the 2 external teeth 17.4 (3x5.8) and sprocket bore 16 mm REF 17504.25305D.

          Please note that Leman parts are not compatible with original parts, you must fit a Leman chain + guide + sprocket.
