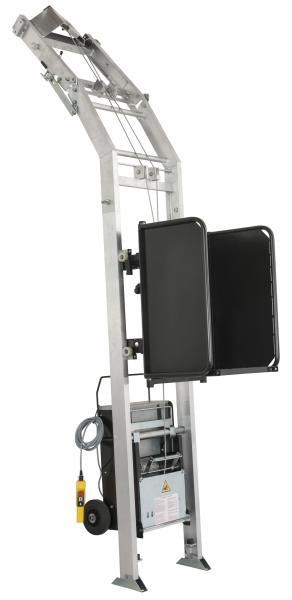

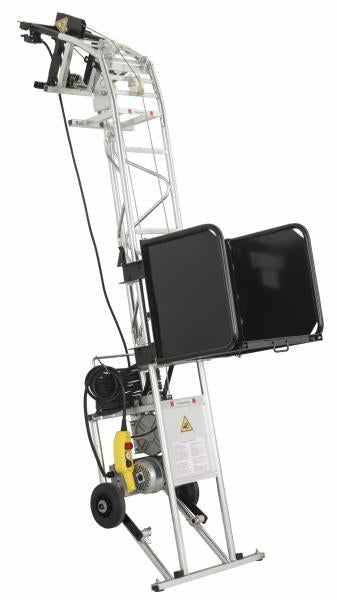

Haemmerlin MAXIAL 175/20 - ROOFING 10.50 M material hoist in aluminum, light and very weather resistant, it does not rust. Installation and handling are made easier thanks to the lightness of aluminum, ideal for installing tiles, materials for the construction of a roof. Construction site material hoist with interlocking ladders in aluminum profile. Payload increased to 175 kg. Maximum height extended up to 20 m. Large support width of the ladders: better stability. New pre-angled knee pad adjustable from 30 to 60°. Roofing tray with removable side panels, capacity 197 l, dimensions 558 x 445 x 794 mm. Front panel optional. Aluminum ladders. Strong and durable, do not rust. Quick installation and easy handling thanks to the lightness of the aluminum. Winch easily removable from the base ladder and equipped with wheels for handling. Maximum working height 20 m obliquely and vertically (with addition of components, contact us). Lifting speed: 22 m/min. Pre-angled aluminum knee pad adjustable from 30 to 60°. Single-phase electric winch 220 V / 50 Hz, thermal protection. Power 1.1 kW. 24V detachable remote control. Standard trolley equipped with a parachute system. Low safety by slack cable integrated into the winch, high safety by end of travel. Low stops integrated into the base ladder. Minimum power of a generator: 5.5 kVA. Tool-free assembly thanks to the Easy Bolt quick-release bolt system. Weight: 167 kg

Read more less

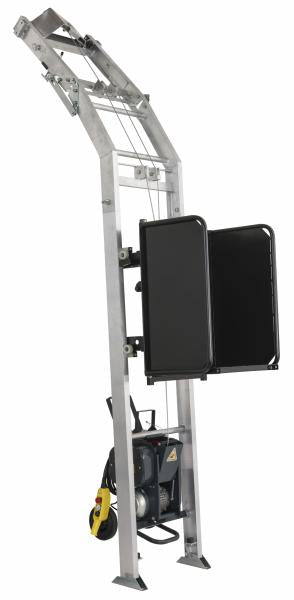

Haemmerlin MAXIAL excellium- 200/30 material hoist – roofer 10.50 m in aluminum, light and very weather resistant it does not rust. Installation and handling are made easier thanks to the lightness of aluminum, ideal for installing tiles, materials for the construction of a roof. Construction site material hoist with interlocking ladders in aluminum profile. Payload 200 kg. Large support width of the ladders: better stability. Winch with frequency variator: soft start, reliability and protection of the motor and cable, low noise use. Roofing tray with removable side panels, capacity 197 l, dimensions 558 x 445 x 794 mm. Front panel optional. High lifting speed: 28 m/min. Quick installation and easy handling thanks to the lightness of the aluminum. Winch easily removable from the base ladder and equipped with wheels for handling. Maximum working height 20 m obliquely and 30 m vertically (with addition of components, contact us). Pre-angled aluminum knee pad adjustable from 30 to 60°. Single-phase electric winch 220 V / 50 Hz, thermal protection. Power 1.5 kW. Detachable 24V remote control. Standard trolley equipped with a parachute system. Low safety by slack cable integrated into the winch, high safety by end of travel. Low stops integrated into the base ladder. Minimum power of a generator: 6.5 kVA. Tool-free assembly thanks to the Easy Bolt quick-release bolt system. Weight: 195 kg.

Read more less

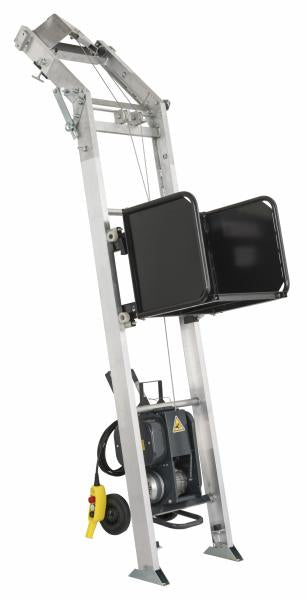

Haemmerlin MAXIAL COMPACT material hoist in aluminum, light and very weather resistant, it does not rust. Installation and handling are made easy thanks to the lightness of aluminum, ideal for installing tiles, materials for the construction of a roof. Construction site material hoist with interlocking ladders in aluminum profile. Payload 150 kg. New knee pad adjustable from 0 to 40°. Flexible adjustment: 0.5 m, 1 m and 2 m scales. Quick installation thanks to pre-assembled elements (integrated roofer's platform trolley, low stops included in the base ladder) Easy installation and handling thanks to the lightness of aluminum. Aluminum ladders. Strong and durable, do not rust. Equipped with a roofing tray with removable side panels, capacity 124 l, dimensions 556 x 446 x 502 mm. Front panel optional. Winch easily removable from the base ladder and equipped with wheels for handling. Maximum working height 15 m obliquely and vertically (with addition of components, contact us). Lifting speed: 20 m/min. Single-fold aluminum knee pad adjustable from 0 to 40°. Single-phase electric winch 220 V / 50 Hz, thermal protection. Power 0.85 kW. 24V detachable remote control. Standard trolley equipped with a parachute system. Low safety by slack cable integrated into the winch, high safety by end of travel. Low stops integrated into the base ladder. Minimum power of a generator: 4.5 kVA. Tool-free assembly thanks to the Easy Bolt quick-release bolt system. Weight: 147 kg.

Read more less

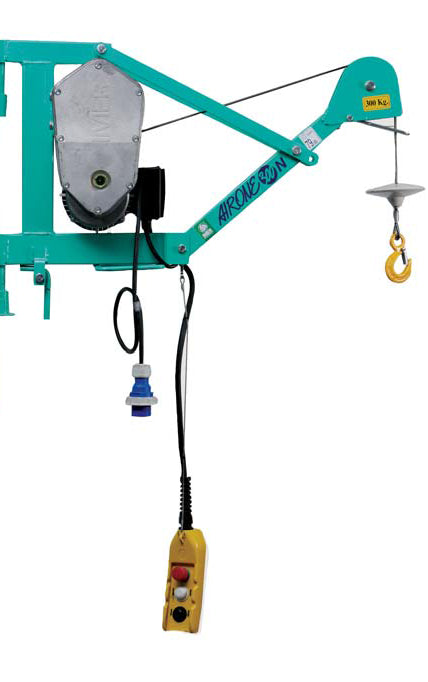

The Imer AIRONE300N hoist is perfect for lifting bulky materials thanks to its 0.85 to 1.10 m telescopic jib which avoids touching the scaffolding or a wall and is ideal for passing materials through windows. With a load of 300 kg and a lifting speed of 19 m/min, it works quickly at great heights in complete safety. Very robust 220 V self-braking motor, 1 m remote control, working height 30 m. Safety device on the ascent. For any delivery to Corsica , contact us for a quote.

Read more less

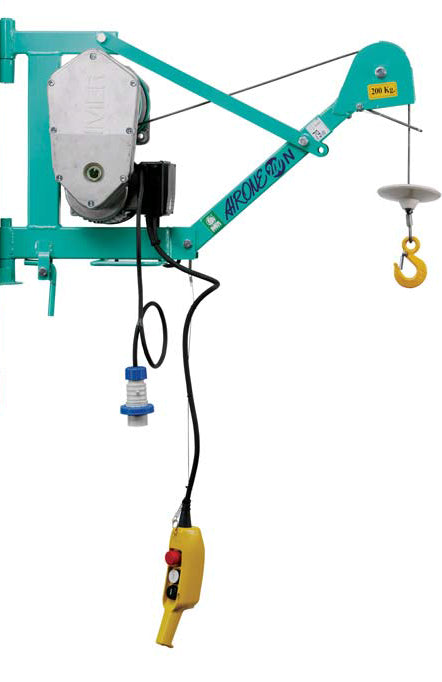

The Imer AIRONE 200N hoist is perfect for lifting bulky materials thanks to its 0.85 to 1.10 m telescopic jib which avoids touching the scaffolding or a wall and is ideal for passing materials through windows. With a load of 200 kg and a lifting speed of 19 m/min, it works quickly at great heights in complete safety. Very robust 220 V self-braking motor, 1 m remote control, working height 30 m. Safety device on the ascent. For any delivery to Corsica , contact us for a quote.

Read more less

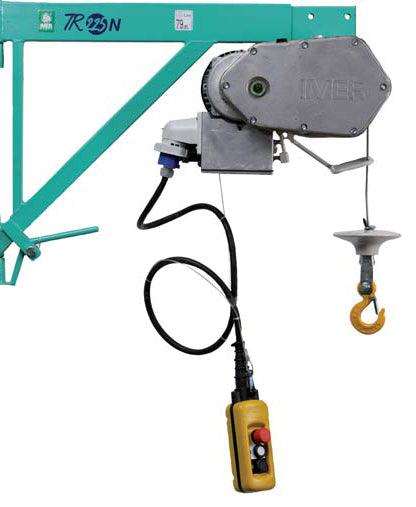

The Imer TR225N hoist is perfect for lifting bulky materials thanks to its 0.76 to 1.12 m telescopic jib which avoids touching the scaffolding or a wall. With a load of 200 kg and a lifting speed of 19 m/min it works quickly at great heights in complete safety. Its transverse drum design ensures quality winding whatever the load. Very robust and quiet 220 V self-braking motor, 1.5 m remote control, 30 m working height. Safety device on ascent. For any delivery to Corsica , contact us for a quote.

Read more less

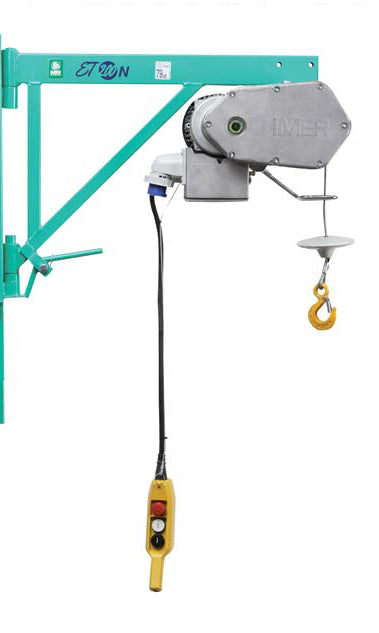

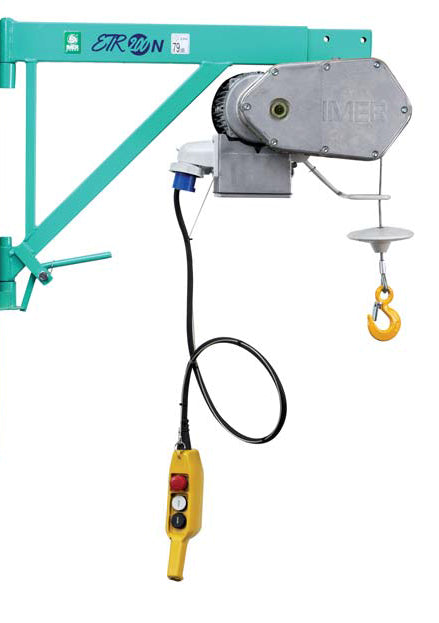

The Imer ETR200N hoist is perfect for lifting bulky materials thanks to its 0.72 to 1.12 m telescopic jib which avoids touching the scaffolding or a wall. With a load of 200 kg and a lifting speed of 19 m/min it works quickly at great heights in complete safety. Very robust 220 V self-braking motor, 1.5 m remote control, 30 m working height. Safety device on ascent. For any delivery to Corsica , contact us for a quote.

Read more less

The Imer ES200n hoist is ideal for operations that do not require an extension of the lift. With a lifting capacity of 200 kg it is perfect for construction work. Maximum working height: 30 m, 230 V single-phase electric motor with oil-bath reducer equipped with steel pinions immersed in oil. Front winding allowing optimal cable positioning, which avoids any problem of fraying and premature wear of the cable. Safety device when lifting, upper limit switch. Lifting speed 19 m/min. For any delivery to Corsica , contact us for a quote.

Read more less

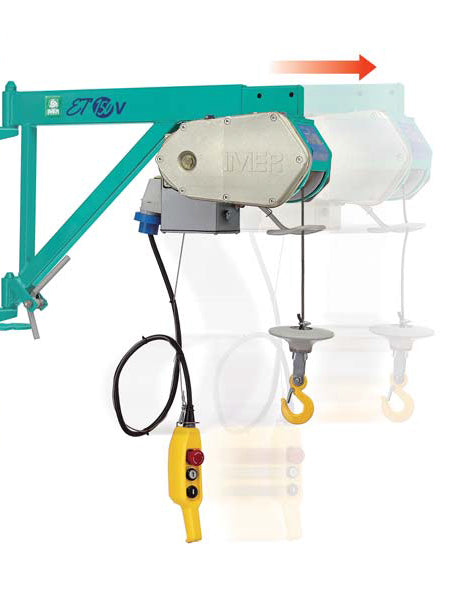

The Imer ET150N hoist is perfect for lifting bulky materials thanks to its 0.72 to 1.12 m telescopic jib which avoids touching the scaffolding or a wall. With a load of 150 kg and a lifting speed of 30 m/min it works quickly at great heights in complete safety. Very robust 220 V self-braking motor, 1.5 m remote control, 40 m working height. Safety device on ascent. For any delivery to Corsica , contact us for a quote.

Read more less

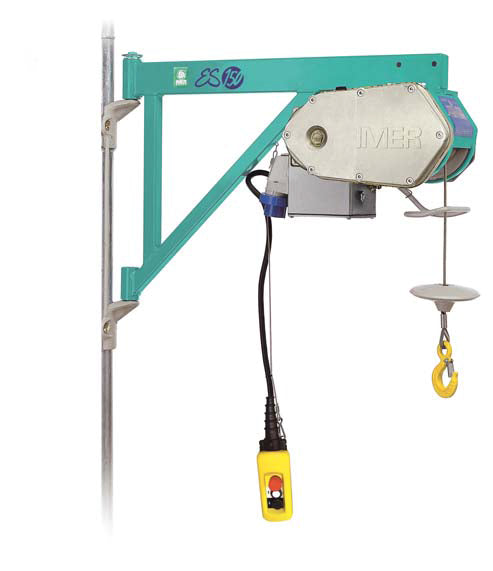

The Imer ES150 hoist is ideal for operations that do not require an extension of the elevator. With a lifting capacity of 150 kg it is perfect for construction work. Maximum working height: 25 m, 230 V single-phase electric motor with oil-bath reducer equipped with steel pinions immersed in oil. Front winding allowing optimal cable positioning, which avoids any problem of fraying and premature wear of the cable. Safety device on ascent, upper limit switch. For any delivery to Corsica , contact us for a quote.

Read more less

Haemmerlin CASTOR STEEL 150/20 10 M hoist, specially designed for roofers, essential for fast and safe work when installing tiles and materials for roof construction. Payload 150 kg, electro-galvanized ladders of the triangular beam type for maximum rigidity and corrosion resistance. New working height: up to 20 m maximum, for greater performance. Winch protected against theft as it is integrated into the base ladder. Equipped with a standard 120 l steel platform with removable side panels for transporting very bulky equipment. Optional front panel. Maximum working height 20 m obliquely and vertically (with addition of components, contact us). Lifting speed: 20 m/min. Pre-angled steel knee brace adjustable from 20 to 60°. Single-phase electric winch 220 V / 50 Hz integrated in the base ladder. Power 0.75 kw. Basic ladder equipped with a pair of wheels for easy handling. Possible installation obliquely and vertically for a working angle of 30 to 90°. Non-detachable 220 V direct remote control. Universal trolley equipped with a parachute system. Supports integrated into the knee pad and head crosspiece. Minimum power of a generator: 4.5 kVA. Tool-free assembly thanks to locking pins. Weight: 165 kg.
